Company profile
About Us
Shenzhen Weigu Electronic Technology Co. Ltd (brand: Vegoo) is a new high-tech enterprise who specializes in the R&D, manufacture, sales and service of LED displays. Our factory covers an area of nearly 10,000 square meter, monthly production reach to 8,000 square meters of LED display with 15 sets high-speed SMD machine.
R&D ensure the Performance
Vegoo builds R&D department since 2016 that develop new products to satisfy the customers' demands. All our products have been tested by professional agency and got the certificates of RoHS, CE, EMC, FCC. We providing more thoughtful services to our customers, ensuring product quality and cost-effectiveness.
A Wide Range of Products
Our main products include LED rental display series, outdoor advertising board series, indoor small pixel pitch series, stadium display series, window transportation display series, LED ball and various kinds of heteromorphic displays and more.
Widely Used in Various Public Places
Products are widely used in various public places: such as commercial plaza, government agency, stadiums, transport facilities, financial institutions, theater, performance hall, etc. Our Products are exported to the United States, Europe, Southeast Asia and other countries, HongKong,Taiwan and other regions.
Partner with Us Today
For your assurance, we provide one-year warranties for our products after delivery from factory. To source high-quality LED displays, call or email us today.
Specifications
| Pixel Pitch | 8mm |
| Pixel Configuration | 1R1G1B/SMD3535 |
| Pixel Density | 15,625 pixel/m2 |
| Module Size(L×W) | 320mm×160mm |
| Cabinet Size(L×W×H) | 960mm×960mm×130mm |
| Module Resolution | 40×20 |
| Cabinet Resolution | 120×120 |
| Driving Method | 1/ 5 Scan |
| Driving IC | FM6124 |
| Brightness | 6000/㎡ |
| Contrast | 6000:1 |
| Brightness Adjustment | Auto and Manual |
| Power Consumption | Max Power: ＜760W/㎡;average power: ＜380W/㎡ |
| Cabinet Weight | 25kg |
| Viewing Angle (H/V) | 140º / 120º |
| Control Distance | cable100m or Multimode500m |
| Frame Frequency | 60 Hz |
| Refresh Rate | >1920Hz |
| MTBF | >50000 hours |
| Life Span | 100,000 Hours |
| Power Supply | 110-220VAC/5VDC |
Case
Product Tags:
|
|

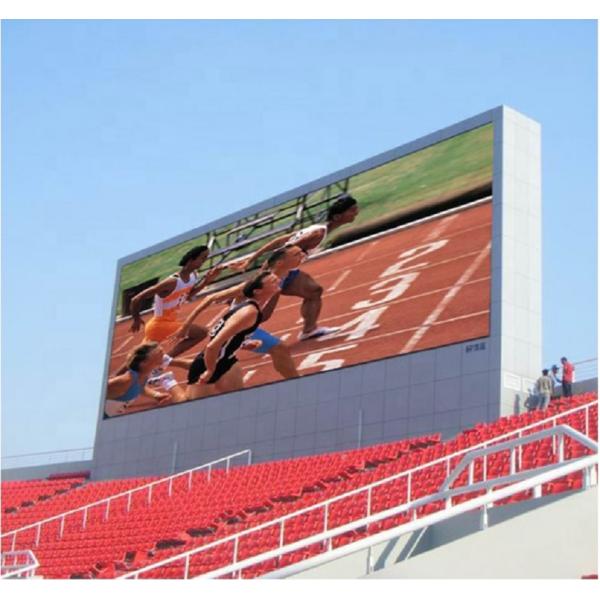

Customized Outdoor P8 LED Advertising Display with 7500nits Brightness and IP65 Protection Images
|
